MECM not updating Heartbeat DDR and Hardware Scan info

by

Overview

In Microsoft SCCM (ConfigMgr), administrators may encounter situations where client heartbeat status appears outdated or incorrect in the console, even though the devices are actively communicating with the Management Point.

A quick and effective workaround in such cases is executing the SQL stored procedure:

EXEC CH_syncClientSummary

This article explains when and why to use this command, and what it actually fixes.

Problem Scenario

You may observe the following:

  • Devices show old or stale “Last Heartbeat Discovery” values
  • Policy requests are current, but the heartbeat appears outdated
  • Multiple devices are impacted
  • No obvious client-side issues

This creates confusion, especially when validating client health.

Root Cause

This behaviour is typically not a client issue.

Instead, it is caused by a delay in SCCM summarisation processes, where:

  • Raw client data (DDR / heartbeat records) exists in the database
  • But the summary tables used by the SCCM console are not updated

As a result, the console displays outdated information.

Solution: Force Client Summary Synchronisation

You can manually refresh the summary data using the following SQL command:

EXEC CH_syncClientSummary

The guide below demonstrates how to configure the recurring job using the GUI in SQL Server Management Studio (SSMS), based on the configuration shown in the screenshots, to enable periodic manual summary synchronisation.

Step 1: Connect to the Correct SQL Instance

  • Open SSMS
  • Connect to your SCCM SQL Server (e.g., SCCM)
  • Ensure your SCCM database (e.g., CM_ICC) is present

Step 2: Navigate to SQL Server Agent Jobs

  • In Object Explorer
    • Expand SQL Server Agent
    • Expand Jobs

You should see existing jobs.

Step 3: Create a New Job

Right-click Jobs → New Job

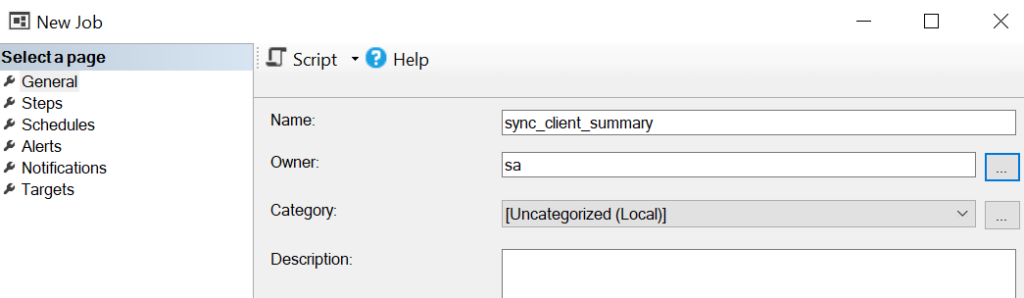

Under General tab:

  • Name: sync_client_summary
  • Owner: sa (or appropriate service account)
  • Category can remain default

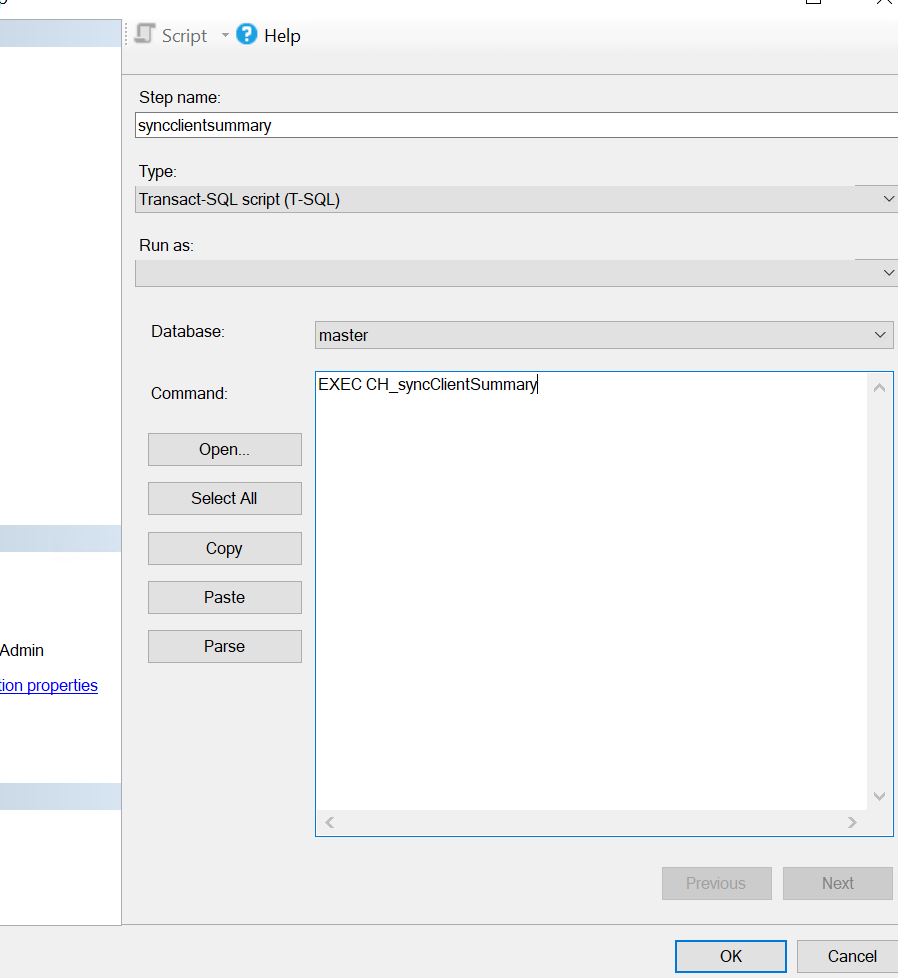

Step 4: Configure Job Step

Go to Steps → New

Fill in:

  • Step name: syncclientsummary
  • Type: Transact-SQL script (T-SQL)
  • Database: Your SCCM DB (e.g., CM_GGN)
  • Command:
EXEC CH_syncClientSummary

Click OK

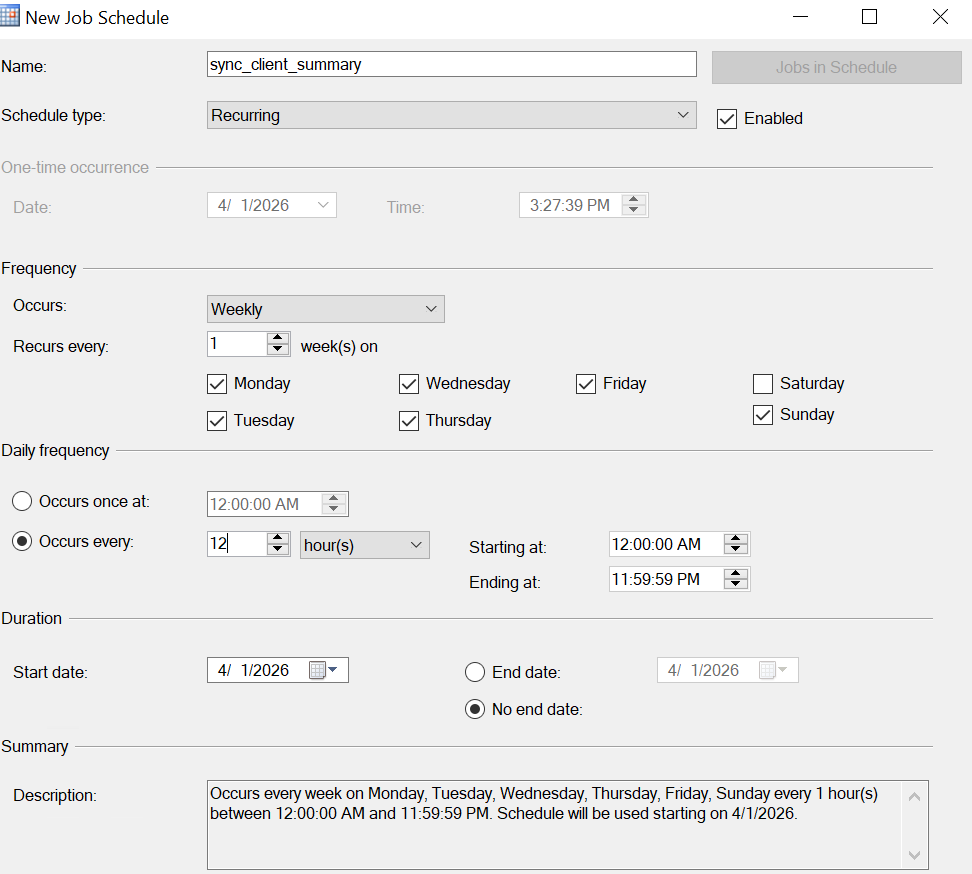

Step 5: Configure Schedule

Go to Schedules → New

Set the following:

  • Name: sync_client_summary
  • Schedule type: Recurring
  • Enabled: Checked

Frequency:

  • Occurs: Weekly
  • Recurs every: 1 week
  • Select:
    • Monday
    • Tuesday
    • Wednesday
    • Thursday
    • Friday

Daily Frequency:

  • Occurs every: 6 hours
  • Starting at: 12:00:00 AM
  • Ending at: 11:59:59 PM

Duration:

  • Start date: (as required)
  • No end date

This results in execution at:

  • 12 AM, 6 AM, 12 PM, 6 PM (Mon–Fri)

Note: Schedule can vary based on your requirements.

Step 6: Save and Verify

  • Click OK to save the job
  • Verify under:
    • SQL Server Agent → Jobs

You should now see:

  • sync_client_summary listed and enabled

Step 7: Test the Job

  • Right-click the job
  • Select Start Job at Step

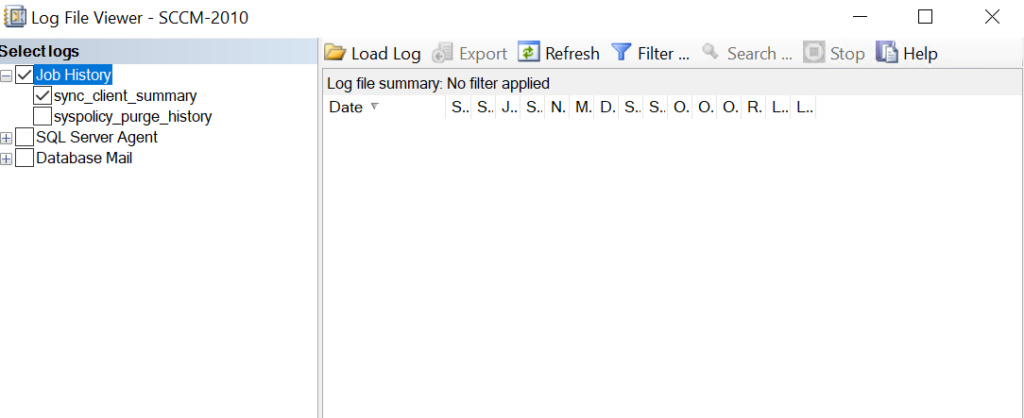

  • Check Job History to confirm successful execution

What This Does

  • Triggers client summary data synchronisation
  • Updates heartbeat-related fields in the SCCM console
  • Reflects the latest client activity

Important Considerations

  • Ensure SQL Server Agent service is running
  • Verify that the correct SCCM database is selected in the job step
  • Ensure the account has permission to execute stored procedures
  • It does not fix client-side heartbeat issues
  • It only refreshes reporting and summarisation data

If you frequently need to run this command, investigate:

  • SQL Server Agent job status
  • SCCM summarisation components (statmgr.log)
  • State message processing backlog
  • SQL performance and indexing

When to Use This

Use this method when:

  • Heartbeat data appears outdated across multiple devices
  • You have verified that clients are active and communicating
  • You suspect a summarisation delay

When Not to Use

Do not rely on this command if:

  • Clients are actually offline
  • DDR or heartbeat discovery is not running on clients
  • There are communication issues with the Management Point

Conclusion

Using SQL Server Agent GUI to schedule CH_syncClientSummary provides a simple and effective way to maintain accurate client heartbeat status in SCCM. However, consistent reliance on this approach indicates an underlying issue that should be addressed for long-term stability.
